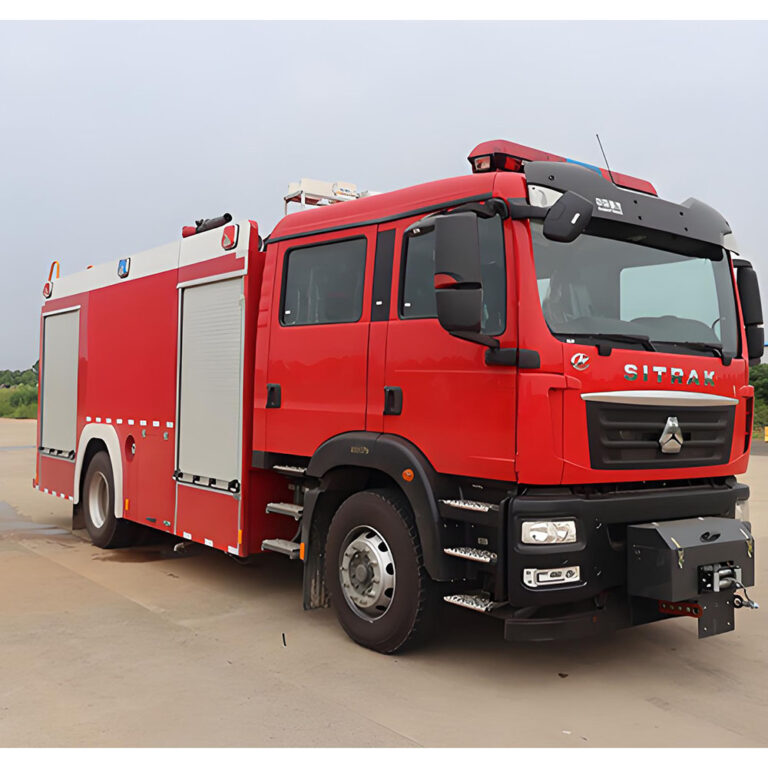

CAFS High-Pressure Foam Spray Fire Truck
CAFS High-Pressure Foam Spray Fire Truck
| Category | Specification | Customization Options |
|---|---|---|
| Basic Parameters | ||
| – Total Mass | 19,490 kg | Adjustable payload (up to 7,540 kg) |
| – Tank Capacity | 7.54 m³ (Water: 5.7 m³, A-Class Foam: 0.24 m³, B-Class Foam: 1.6 m³) | Optional foam tank combinations and sizes |
| – Dimensions | 9,100 × 2,540 × 3,720 mm | Flexible chassis lengths (7,350–10,650 mm) and axle configurations (4,200–6,000 mm轴距) |
| Chassis & Engine | ||
| – Chassis Model | ZZ5206N471GF5 (Sinotruk HOWO) | Multiple axle options (2/3+2, 3/9+8, etc.) and tire sizes (315/80R22.5, 12R22.5, etc.) |
| – Engine Options | MC07H.33-60 (240 kW), WP8.350E61 (257 kW), MC11.40-60 (297 kW), and 10+ variants | Tailored engine selection for power, fuel efficiency, or terrain requirements |
| Safety & Compliance | ||
| – ABS System | ZF Commercial Vehicle Systems (Qingdao), Model 4460046300 | Optional advanced safety features (e.g., reinforced side guards, bolt-connected rear protection) |
| – Emission Standard | GB17691-2018 China VI | Compliance with regional environmental regulations |
Customization Highlights
| Feature | Standard | Customizable Add-Ons |
|---|---|---|
| Lighting | Standard emergency lights | Red strobe lights, enhanced LED warning systems |
| Foam System | A/B-Class foam tanks | Hybrid tank configurations, expanded foam capacity |
| Chassis Configuration | 4500–5800 mm轴距 | Extended轴距 (up to 6,000 mm), reinforced钢板弹簧片数 (2/3+2 to 11/9+8) |
| Body Material | Q235A steel rear protection | Upgraded materials for extreme conditions (e.g., corrosion-resistant coatings) |
| Operational Tools | CAFS and basic firefighting tools | Add pumps, extended hoses, or IoT-enabled monitoring systems |
What is a CAFS Fire Truck?
A CAFS Fire Truck has a special foam system. CAFS means Compressed Air Foam System. It mixes water, foam, and air to fight fires better than just water.
How CAFS Works
The truck makes foam by mixing:
- Water
- Foam soap
- Air from big tanks
You can switch from water to foam very fast! The air comes from high-pressure tanks that you can change without stopping.
Parts of a CAFS Fire Truck
| Part | What It Does | Why It’s Good |
|---|---|---|
| High-pressure air tanks | Give air to make foam | Can be changed during use |
| Digital foam controls | Mix the right amount of foam | Makes using it easy for all fire crews |
| Special nozzles | Spray the foam | Can switch between water and foam fast |
| Foam tank | Holds the foam soap | Different sizes for different needs |
Why CAFS Is Better
CAFS trucks are very good at putting out fires because:
- The foam sticks to things better than water
- It puts fires out faster
- It uses less water – up to 75% less!
- Works on both solid and liquid fires
“CAFS technology marks a big step forward in firefighting.”
Types of CAFS Trucks
You can get CAFS systems in different sizes:
- Small trucks that can go where big trucks can’t
- Medium trucks for most fire departments
- Big trucks with lots of foam for big fires
Some trucks have preset buttons that make it easy to pick “wet,” “medium,” or “dry” foam.
Where CAFS Trucks Work Best
CAFS trucks help fight fires in many places:
- Buildings on fire
- Car fires
- Forest fires
- Factory fires with special chemicals
- Places with little water
Learn More About Special Trucks
Want to know more about special trucks? Check these out:
- High-Pressure Fire Truck with CAFS for advanced firefighting
- CAFS System Fire Truck with top foam technology
- Emergency Fire Rescue Truck for fast response
How to Use a CAFS Truck
Using a CAFS truck is easy:
- Pick the foam type with the digital control
- Choose “wet,” “medium,” or “dry” foam
- Aim the hose at the fire
- The foam will stick to the fire and put it out fast
CAFS is the smart way to fight fires now and in the future!
