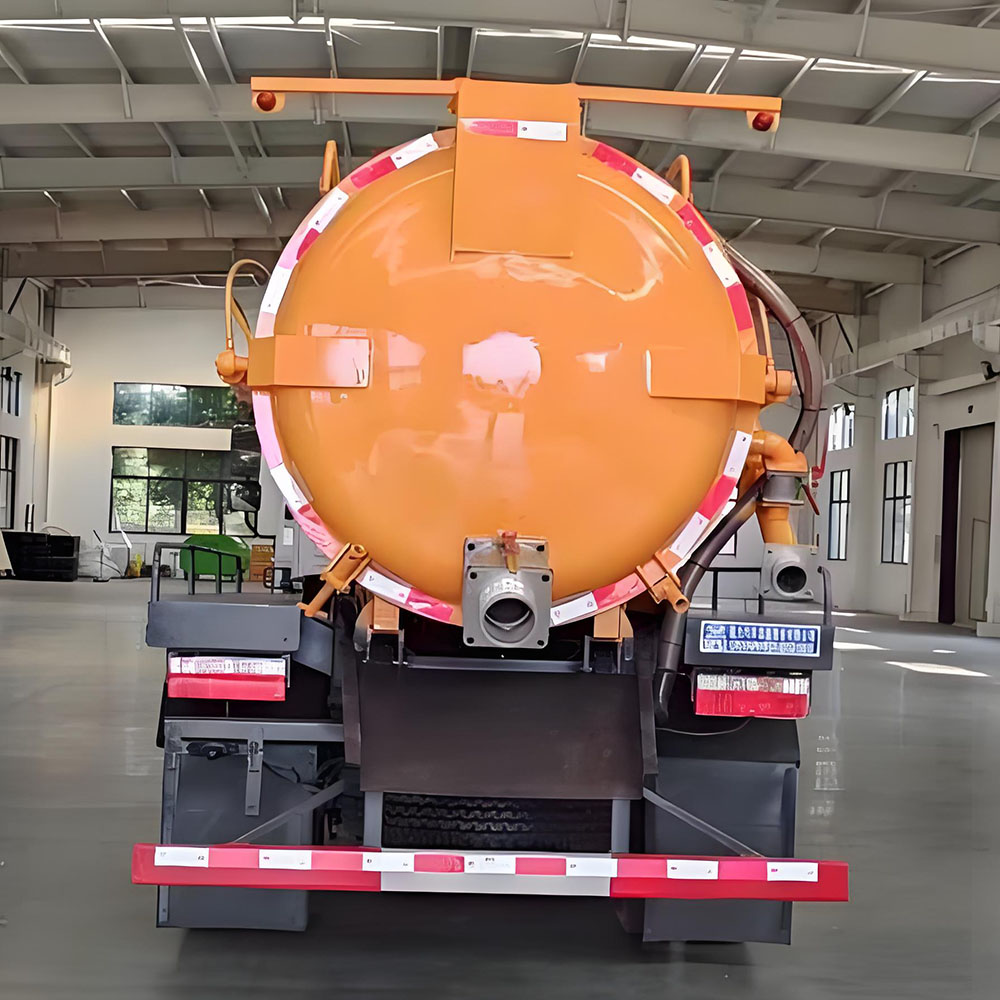

Plug-in Hybrid Sewage Vacuum Truck
Plug-in Hybrid Sewage Vacuum Truck (CL5120GXWPHEV) – Key Specifications & Customization Options
Core Specifications
| Category | Details |
|---|---|
| Brand | Chengli |
| Model | CL5120GXWPHEV |
| Total Mass | 11,995 kg |
| Tank Capacity | 7.02 m³ (Effective: 6.68 m³) |
| Payload Capacity | 5,350 kg |
| Dimensions (L×W×H) | 7,200 × 2,300 × 3,000 mm |
| Max Speed | 89 km/h |
| Wheelbase | 3,970 mm (Standard) |
| Emission Standard | GB17691-2018 China VI (Euro VI Equivalent) |
| Powertrain | Diesel/Electric Hybrid |
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Charging | External Charging Supported |
Performance & Features
| Parameter | Description |
|---|---|
| Functional Use | Specialized for suction, transport, and disposal of liquid waste (density: 800 kg/m³). |
| Key Components | Tank, suction/discharge system, hydraulic system. |
| ABS System | ABS/ASR-24V-4S/4M (Manufacturer: Xiangyang Dongfeng Longcheng Machinery Co.) |
| Engine | D25TCIF1 Engine (2,499 cc, 110 kW) by Kunming Yunnei Power Co. |
| Tire Options | 8.25R20 14PR, 8.25R20 16PR, 245/70R19.5 14PR |
Eco-Friendly Advantages
| Feature | Benefit |
|---|---|
| Hybrid Powertrain | Reduced fuel consumption and emissions. |
| China VI Compliance | Meets strict environmental regulations. |
| LiFePO4 Battery | High safety, long lifespan, and eco-friendly energy storage. |
Customization Options (Tailored to Client Needs)
| Customizable Component | Options |
|---|---|
| Exterior Design | Choice of upper body styling and rear appearance. |
| Cab Configuration | Optional cab designs to suit operational requirements. |
| Protection Guards | Side/rear guards (Material: Q235 steel, welded, adjustable height/design). |
| Tank Specifications | Adjustable tank dimensions (Total length × diameter: 4,600 × 1,500 mm). |
| Axle Configuration | Fixed 3,970 mm wheelbase (other options available on request). |
| Additional Features | Custom hydraulic systems, suction/discharge enhancements, or tool mounts. |
Plug-in Hybrid Sewage Vacuum Truck
What Is It?
A Plug-in Hybrid Sewage Vacuum Truck is a big truck that cleans sewers. It uses two kinds of power – a battery and gas. This helps it work better and be good for Earth.
How It Works
The truck has a big tank to hold dirty water. It has a strong pump that can suck up waste. The electric part works in city areas. The gas part works when you need more power.
| Part | What It Does |
|---|---|
| Battery | Powers the truck in city areas |
| Gas Engine | Gives extra power when needed |
| Vacuum System | Sucks up waste from sewers |
| Tank | Holds the waste until it can be dumped |
Where You Can Use It
- City sewers that need cleaning
- Rural areas with septic tanks
- Construction sites with water to remove
- Emergency spills that need quick cleanup
- Industry sites with waste water
Why It’s Good
The Plug-in Hybrid Sewage Vacuum Truck is better than old trucks because:
- It uses less gas
- It makes less noise in cities
- It has strong suction for tough jobs
- It helps keep our world clean
- It can work all day without stopping
Who Uses It
- City workers who clean streets
- Septic companies who pump tanks
- Construction teams who need to remove water
- Emergency teams who clean spills
- Factory workers who manage waste
Learn More About Our Trucks
Want to see more trucks like this? Check these out:
- Sewer Vac Cleaning Truck – For heavy-duty sewer cleaning
- Septic Sewage Truck – Perfect for septic tank service
- High-Efficiency Sewage Vacuum Truck – Our newest model with top features
