Chengli Automobile Industry Park

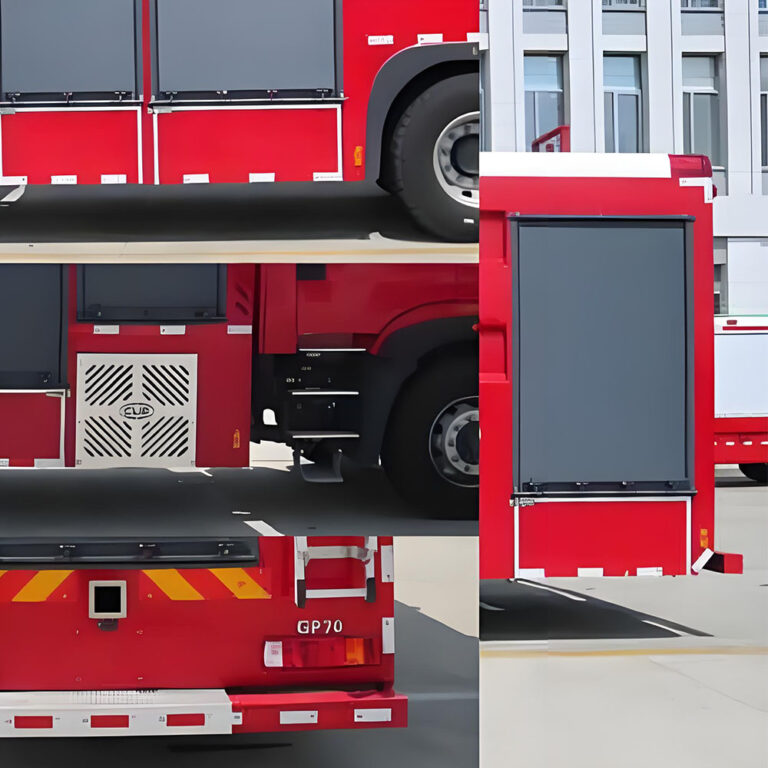

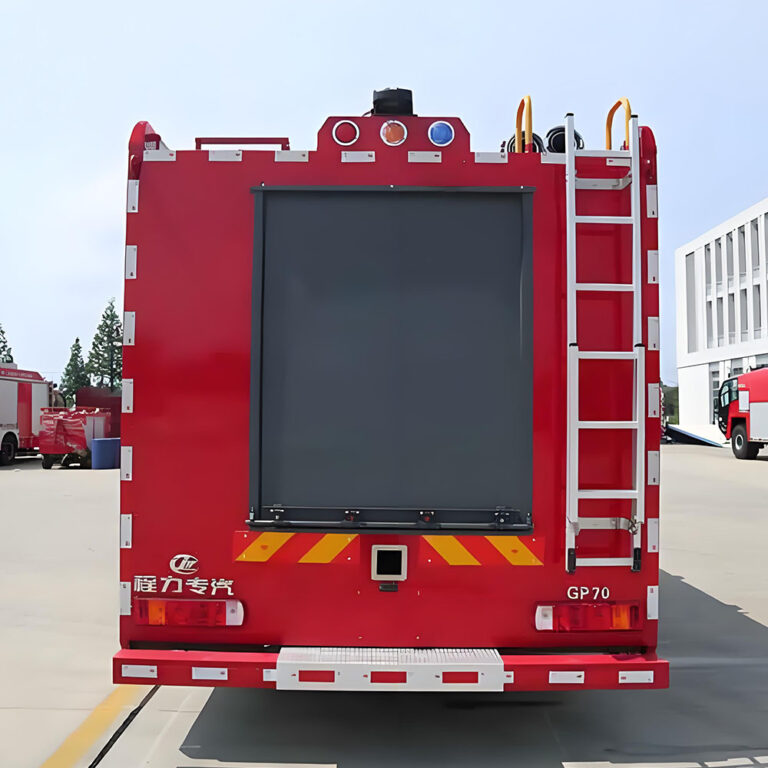

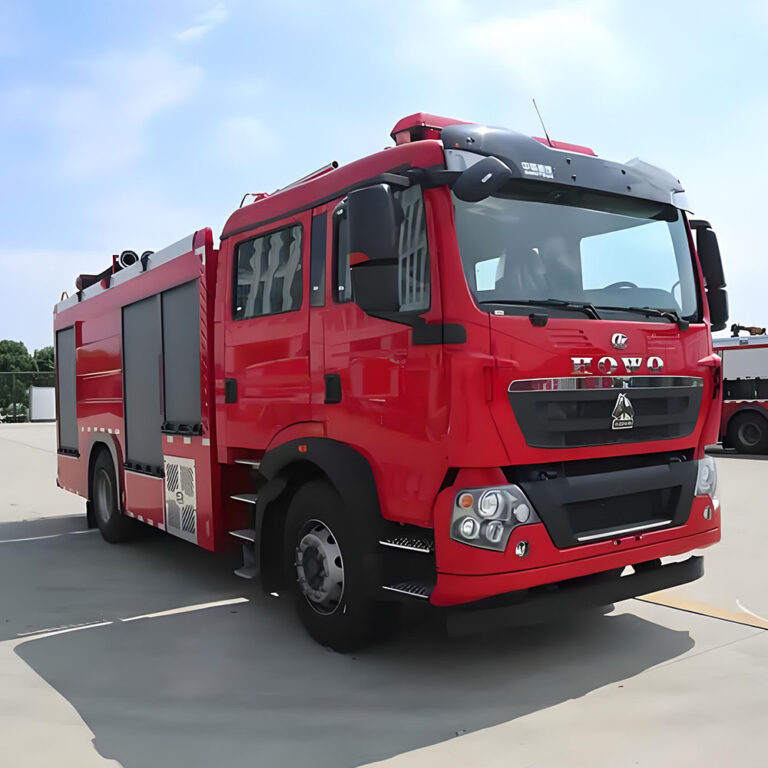

Dry Powder & Foam Fire Truck
Dry Powder & Foam Fire Truck: Your Best Fire Helper
| Category | Specification | Customization Options |
|---|---|---|
| General Specifications | ||
| Model | CLW5190GXFGP70/ASL | Branding & labeling customization available |
| Total Mass | 19,050 kg | Adjustable payload capacity (Base: 6,600 kg) |
| Tank Capacity | 6.6 m³ total:- Water: 2.6 m³- Foam: 2.0 m³- Dry Powder: 2.0 m³ | Modular tank configuration (material/volume ratios customizable) |
| Dimensions | 8,775×2,520×3,660 mm | Extended body variants available |
| Max Speed | 100 km/h | Optional speed limiters for regional compliance |
| Firefighting Systems | ||
|---|---|---|
| Pump & Nozzle | Standard fire pump & cannon | Upgradeable to high-pressure systems (up to 30 bar) |
| Protection | Integral side guardsRear guard: Q235A steel (120×120 mm) | Material/coating customization (stainless steel/anti-corrosion options) |
| ABS System | WABCO 4460046300 | Alternative ABS/ESP systems available |
| Chassis & Powertrain | ||
|---|---|---|
| Chassis Model | ZZ5207TXFV471GF5 (HOWO brand) | Multiple axle configurations (4,200-5,600 mm wheelbase) |
| Engine Options | – MC07H.35-60 (257kW/7360ml)- WP8.350E61 (257kW/7800ml)- MC11.44-60 (327kW/10518ml) | 6+ engine choices with Euro VI/China VI compliance |
| Tire Configuration | 6 tires (315/80R22.5 or 12.00R20) | All-terrain/ice/snow tires available |
| Emission Standard | GB17691-2018 China VI | Retrofit options for EU/US emissions compliance |
| Certification & Safety | ||
|---|---|---|
| ABS Certification | WABCO (Shanghai) Management Co. Ltd. | Optional certifications: CE, NFPA, EN3 |
| Safety Features | Reinforced cabin (2+4 seating)45° approach angle | Add-ons: Thermal imaging systems, night vision, GPS tracking |
What Is This Truck?
A Dry Powder & Foam Fire Truck is a special truck that can put out big fires. It uses three things to stop fires:
- Water
- Foam
- Dry powder
You can use all three at the same time or just one. This makes it good for many types of fires.
What This Truck Can Do
| What It Carries | How Much |
|---|---|
| Dry Powder Tank | 500kg – 2500kg |
| Foam Tank | 1000L |
| Water Tank | Up to 20,000kg |
This truck can spray far:
- Foam can reach 50 meters
- Water can reach 70 meters
Where This Truck Works Best
This truck helps in many places:
- Oil places where fires are very hot
- Power plants with risky fires
- Airports where plane fuel can catch fire
- Factories with big machines
- Forests with big fires
- Ports and docks where ships load
Why This Truck Is So Good
- Stops All Fires: Can put out fires from oil, gas, chemicals, and electricity all at once
- Works Together: All three things (water, foam, powder) can be used at the same time
- Stays Safe: The tanks are tested every three years to make sure they’re safe
- Moves Fast: Can drive quickly to fires that just started
Special Features
- Strong Pump: The fire pump moves water at 60 liters per second
- Big Engine: Has engines like Mercedes Benz or ISUZU with lots of power
- Smart Controls: You can control all sprays from one place
- Tough Tanks: Made from materials that don’t rust
Learn More About Our Fire Trucks
Want to see more trucks that help stop fires?
- Dry Powder Fire Truck – Perfect for industrial fires
- Emergency Rescue Fire Truck – For saving people fast
- Foam Fire Truck – Best for liquid fires
Why You Need This Truck
If you work in a big place with risky fires, this truck can:
- Save lives – Puts out fires fast
- Save buildings – Stops fires from spreading
- Works on all fires – No matter what’s burning
- Keeps working – Built to last many years
- Easy to use – One person can control it
This truck is best for places that need to be extra safe from fire. It costs less than buying three separate trucks for water, foam, and powder.
Safety Tips
- Check the dry powder tanks every three years
- Train your team to use all three spray types
- Keep the truck ready to go at all times
Get your Dry Powder & Foam Fire Truck today and be ready for any fire emergency!
